Place of Origin : Shanghai
Brand Name : HYMOWELL
Material : CPVC
Specification : 4 INCH
Length : STANDARD
Thickness : STANDARD
Standard : ASTM/DIN/ASNZ/JIS, ASTM DIN
Processing Service : Moulding

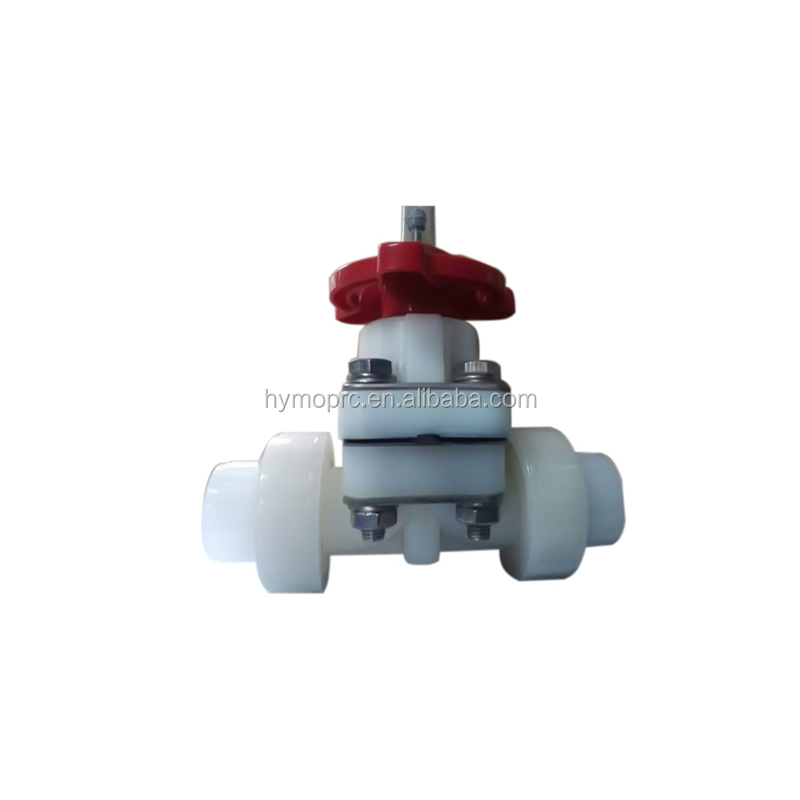

Product name : Diaphragm Valve
Body material : PPH
Usage : Water Supply Irrigation
Size : 1/2 inch to 4 inch
Color : White Grey
Connection : Glue
Valve type : Ball Valve
Pressure : PN10
Brand : HYMO
Price : $51.30/pieces >=1 pieces
item | value |
Warranty | 3 years |
Type | DIAPHRAGM VALVE |
Customized support | OEM, ODM |
Place of Origin | China |
Brand Name | HYMO |
Model Number | V010 |
Application | General |
Temperature of Media | Medium Temperature |
Actuator | Manual |
Media | Water |
Port Size | Dn15-Dn300(1/2′′-10′′) |
Gasket | EPDM |

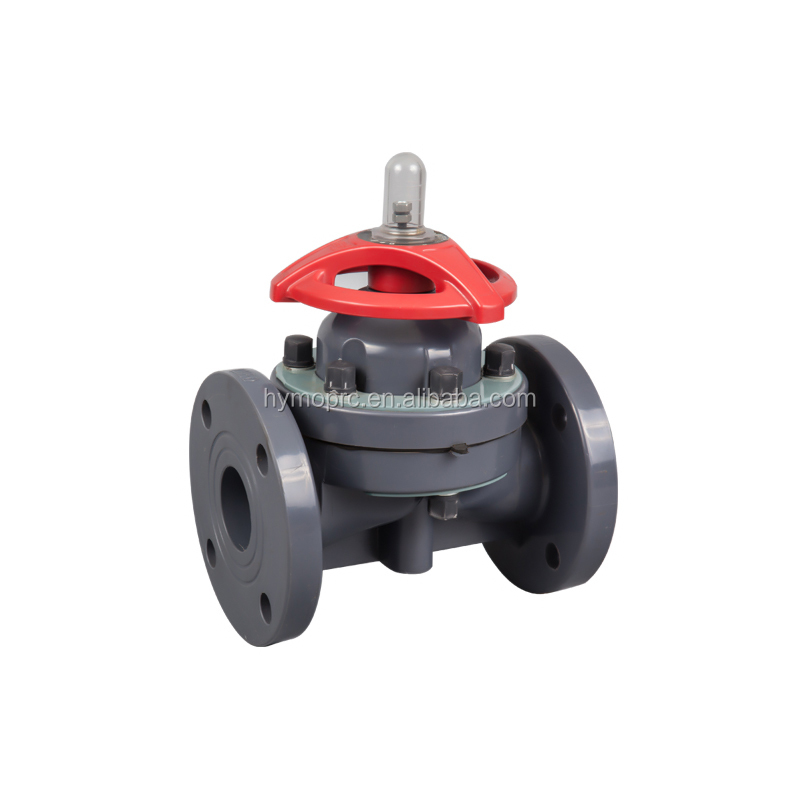

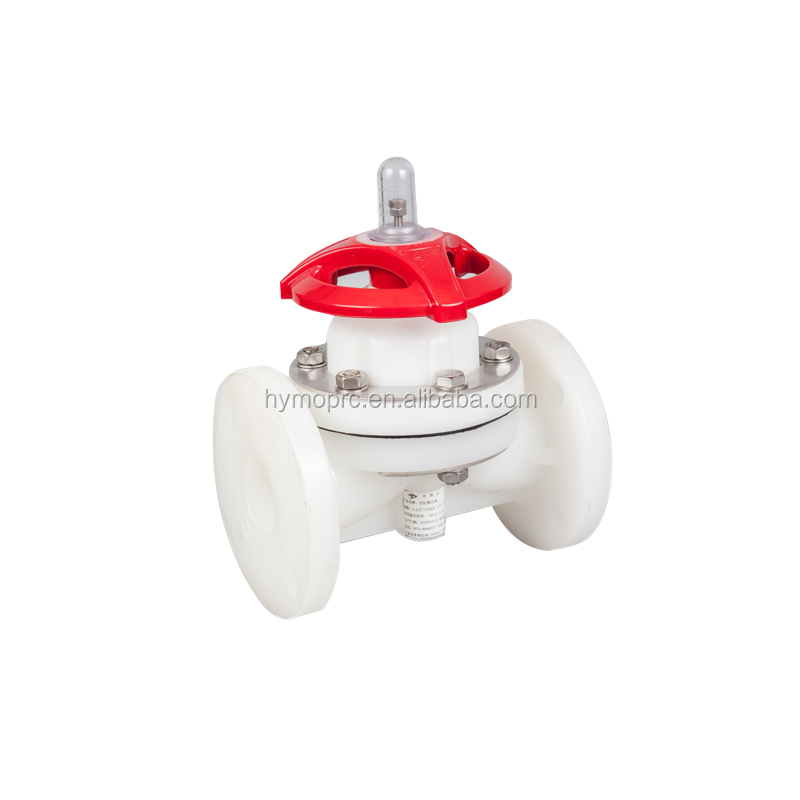

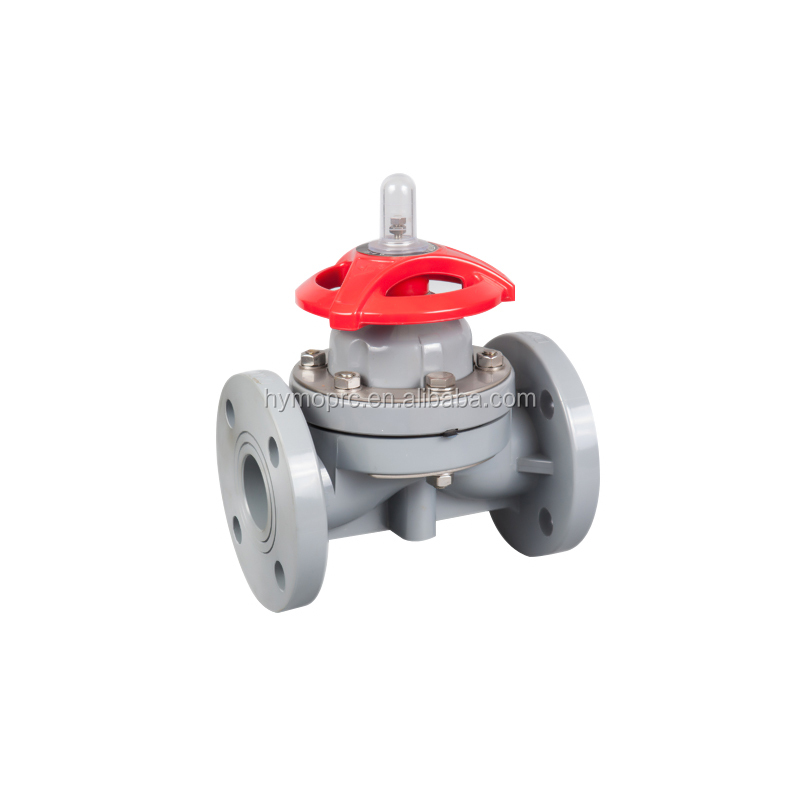

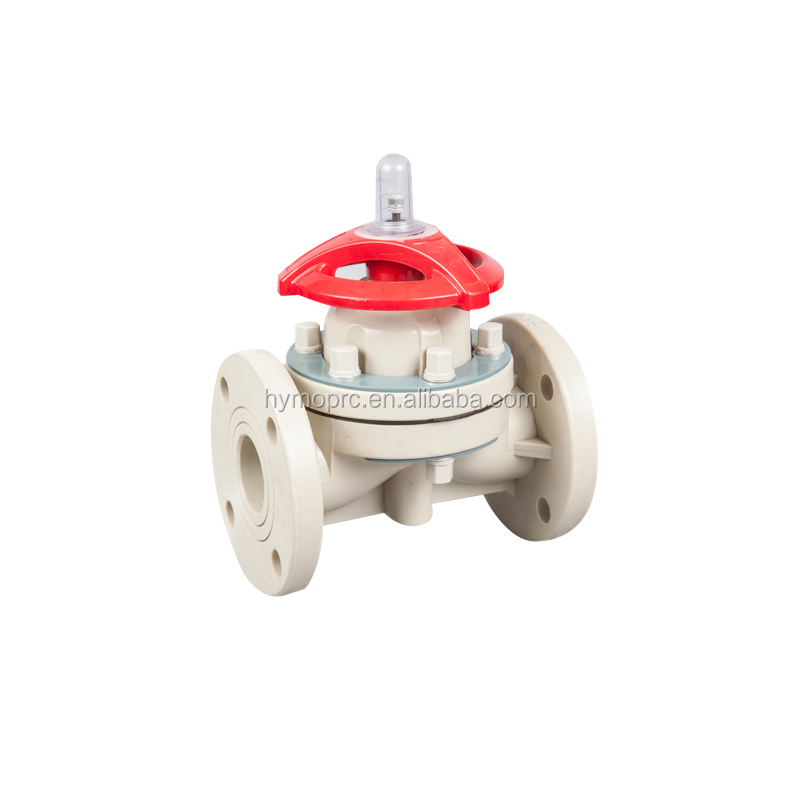

Product name | CPVC WEIR FLANGED DIAPHRAGM VALVE |
Body material | CPVC |
Usage | Chemical, acid, water, oil, etc |
Size | Dn15-Dn300(1/2′′-10′′) |
Standard | DIN, GB, ANSI, JIS |
Color | White Grey |
Connection | Flanged Diaphragm Valve |
Valve type | DIAPHRAGM VALVE |
Pressure | PN10 |
Brand | HYMO |
Material | Medium temperature | Material | Medium temperature |
FRPP | -20℃~ +90℃ | PVDF | -40℃~ +120℃ |
UPVC | -40℃ ~ +60℃ | CPVC | -40℃ ~ +95℃ |

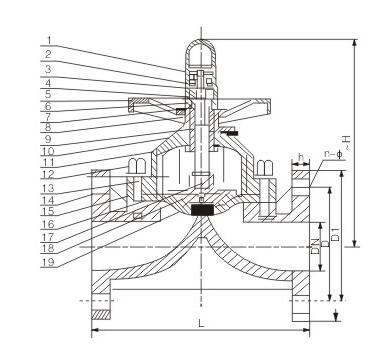

No. | Name | Material | No. | Name | Material | NO. | Name | Material |
1 | Stud | Steel, Stainless Steel | 8 | YokeNut | HT300 Steel | 15 | Flim | EPDM.IIR |
2 | Indicator | Steel | 9 | Stem | Steel, Stainless Steel | 16 | Diaphragm | F46.PFA. PVDF.PTFE |
3 | Stopcover | PC.AS | 10 | Bonnet | FRPP,PVDF UPVC,CPVC | 17 | Pin | Steel, Stainless Steel |
4 | Washer | Steel, Stainless Steel | 11 | Flat bearing | Ball beraing | 18 | Disc | Steel, Stainless C.I.FRP |
5 | Wheel | ABS | 12 | Nut | Steel, Stainless Steel | 19 | Diaphragm | F46 |
6 | RetainingNut | FRPP Steel, Stainless Steel | 13 | Stud | Sted, Stainless Steel | |||
7 | Liningring | PP | 14 | Body | FRPP, PVDF UPVC, CPVC |
![]() |
PPH ASTM DIN Standard 4 Inch Sanitary Plumbing Tank Bottom Solenoid Valve Diaphragm CPVC Images |
